Technowrapp pallet wrappers: we take care of your product

We design and manufacture automatic turntable, arm and rotary ring pallet wrapping machines and pallet handling systems. When manufacturing our automatic pallet wrappers we set ourselves the goal of making your pallet as stable as possible while using the minimum amount of film, both for you and the environment. We achieved this goal: theTechnowrapp automatic pallet wrappers wrap your pallet, guaranteeing stability using just 76 grams of film. Something unachievable for others is our starting point.
In these pages discover why our plants tirelessly produce in 54 countries worldwide over 5 continents.

Followin brochures can be downloaded here: TWIN RINGS

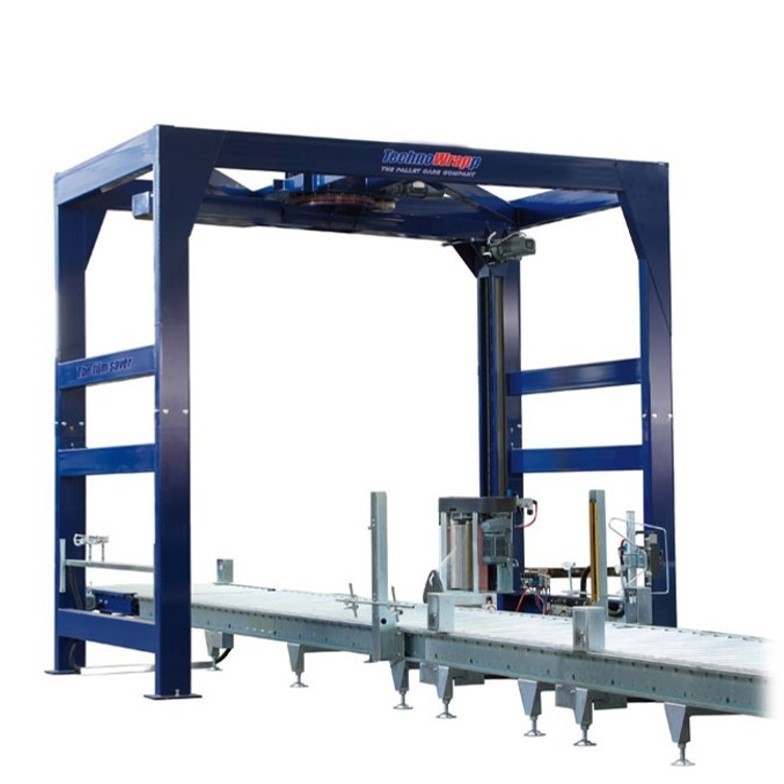

TWIN RINGS

For this automatic pallet wrapper we thought of two rings to hold the reel holder carriage on the upper and lower parts, two rings to counter the torsion that the pre-stretch carriage exerts, two rings to help the operator while changing the reel. A simple solution to avoid a heavy carriage structure and torque on the ring. A patent that eliminates the limit of rotary ring automatic pallet wrappers.

The benefits are evident:
– less stress is exerted on the entire structure of the automatic pallet wrapper;
– the aluminium rotary ring and the pre-stretch carriage no long require heavy structures to contain the torsion;
– ring acceleration and stopping reach new records as they no longer bear useless weights;
– the two rings leave the entire surface of the carriage free and consequently the reel is changed out of the truck in an easy way for the operator.

Take a look at the video of Tecnowrapp´s machines here

Runner Arm

is the world’s fastest automatic stretch wrapping machine thanks to two patents developed by Technowrapp. New and innovative, Runner Arm combines the low management costs of a stretch wrapping machine with rotary arm with the high production of a rotary ring.

136 pallets per hour with 10 layers of wrapping
45 revs. per minute
76 grams of film per pallet

Runner Arm is the automatic stretch wrapping machine with rotary arm and with a centripetal contrast ring; the patented idea by Technowrapp, able to contain and guide the wrapper arm during rotation and obtaining a rotation speed of 45 revs. per minute with low stress exerted on the structure.

The cutting and sealing device of the automatic stretch wrapping machine has a running system, patented by Technowrapp, which can work on the moving load and contribute to the efficiency of the work cycle.

P60 is the automatic stretch wrapper with turntable

for wrapping pallets with stretchable film.
Available also with top sheet dispenser for top sheet cover on the load (P60E).

Available with the new user-friendly control panel.

61 pallets in an hour with 10 layers of wrapping
18 revolution in a minute
76 grams of film for a pallet

The motorized electronic pre-stretch carriage fitted as standard on all Technowrapp automatic stretch wrappers. This device stretches the film and cover and stabilize a pallet with just 76 grams of film for 10 layers of wrapping. (Value taken from pallet 800×1.200 mm, height 1.500 mm and reel of film, thickness 15 μm)
